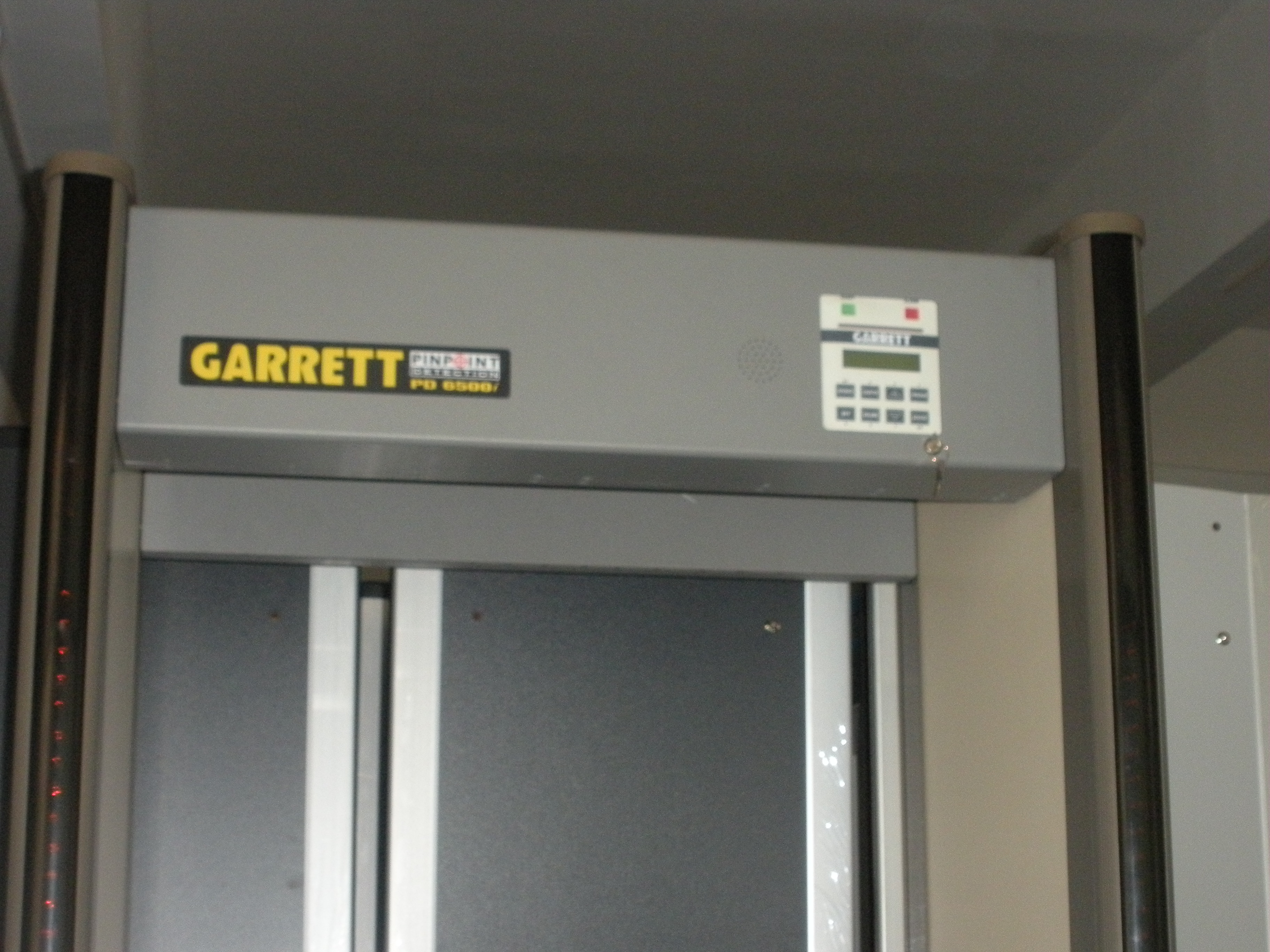

high sensitivity 33 zones portable walk through metal detector PD6500i
Technical parameters
| Voltage | 110V~220VAC 50/60Hz |
| Power | 25W |
| N.W. | 78 KGS |
| G.W. | 84 KGS |
| Outer Dimension | 2240mm(H)*830mm(W)*670mm(D) |
| Inner Dimension | 2000mm(H)*700mm(W)*670mm(D) |
| Work Environment | For indoor use only |
| Work Temperature | -20℃~ +65℃ |
Features
1 33 detecting zones.
2 DSP and microprocessor controlled
3 The sensitivity of each zone can be adjusted from 0 to 199(200 levels in total)separately.
4 Has several kinds of alarm modes for customer . And each zone can be alarmed by LED light and sound.
5 Can only be operated by authorized person who has password,with special remote-control or on mainframe.
6 Harmless to people and person such as pregnant women,persons with pacemaker etc,and floppy disk,tapes and other magnetic material.
7 Comply with General Specification For Walk-through Metal Detector(GB15210-2003),and pass the quality test of The Ministry of Public Security of PRC.
Functions and characters

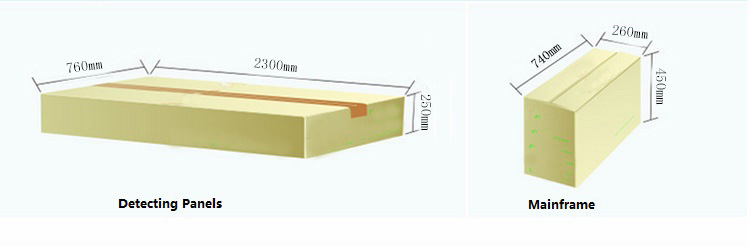

1 It has two parts,one is both sides detecting panels ,the other is main control equipment.
2 It is so sensitive that can even detect a coin. But it sill can detect things like big pieces of metal,knives,guns and other forbidden items,and exclude the impact of belt buckles ,shoes,bras etc.
3 There are LED lights on all the four sides of the door panels,they can accurately display the zone which the forbidden object is in.
4 Information will be recorded and shown on the LCD front panel such as the number of passes,times of alarm etc.
5 It has advanced digital technology which can detect the interference of working environment against itself. So customer can know installation environment better and choose the best installation site. And it also can adjust the detectors’ frequency when they work side by side at the same time.
6 Global exclusive shockproof design .
7 The detecting panel use import fireproof material,ABS,waterproof membrane and aluminium alloy pillar. So it is fireproof ,moisture proof and won’t warp.
8 The alarm volume could be adjusted according to different occasions.
9 It has more than 16 frequency bands which could be adjusted manually or automatically to avoid co-channel interference,that means more than 100 detectors can work well side by side without disturbing each other.
10 It has RJ45 interface,and could be connected to the system such as computer,monitoring system and channel management system.(Optional)
